Evospine Pedicle screw system

Percutaneous MIS or open You Choose and simplify surgeries with the
BAMBOO® Sterile Instrument set.


BAMBOO® is a sterile MIS single use instrument set, created for surgeries

with the percutaneous Evospine® fixation system.

Go for maximum safety for your patients at a minimum expense. No instrument sterilization needed. Just dispose the instruments after surgery or give it back to us for recycle. All these and many other features are combined in the small and handy box.

  • Sterile packed Implants and Instruments.

  • predetermined breaking points for Percutaneous or Open surgery.

  • cannulated and Cementable.

  • 360° rotation for easy rod insertion and screw alignment.

  • No instrument sterilization needed.

  • Simplified Instruments to assist scrub team.

  • Screw Widths 5.5, 6.5 & 7.5 lengths 35-55mm.


MIS single use instrument set

PROCESS OPTIMIZATION AT ITS BEST. IT’S ALL IN THE BOX!



Choose the highest of all hygienic standards. Avoid expensive/costly sterilization processes: With the sterile MIS single use instrument set BAMBOO for our proven evospine fixation system you can save time, money, and get the maximum out of safety. All in a single box!

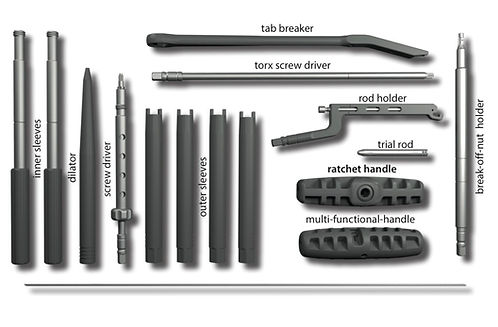

bamboo kit.jpg

MATERIAL



The grey material is a high-performance plastic IXEF GS-1022 (polyarylamid). The material is x-ray-permeable and allows clear view during surgery. The rest of the parts in the set are made of surgical steel.





DESIGN



The whole instrument set is placed in one blister box and has a total weight of only 1,100g. Most instruments are marked with different help notches and laser marks and have multiple use cases. The handles are ergonomically shaped and can be used as T-Handle (also as a ratchet) as well as a straight handle. The main benefit of this product is its compact and slim construction, which gives you a clear view during the x-ray process.
